Automatic capacitor bank - C100

Automatic Power Factor Correction Bank

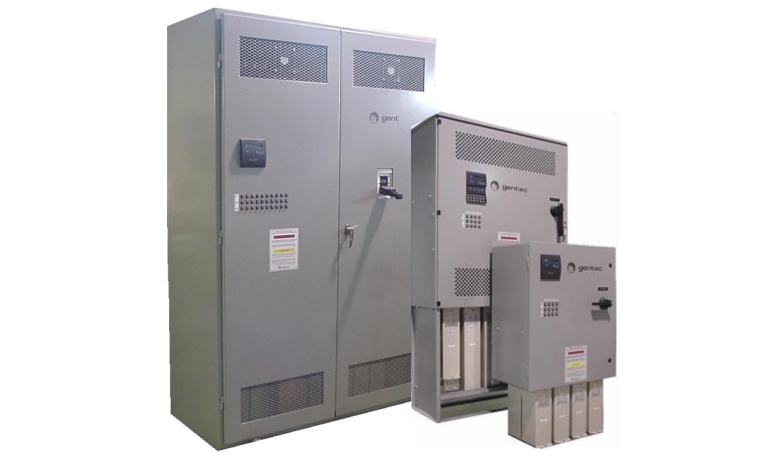

The C100 series automatic power factor correction bank is ideally suited for the centralized correction of the power factor in applications where the installation’s load constantly fluctuates and requires varying amounts of reactive power. A state-of-the-art, microprocessor-based reactive power controller measures the building’s power factor using a single remote current transformer (included) and switches the capacitor modules on/off to maintain the power factor set by the user. Built for floor mounting, the C100 batteries are provided with capacitor units, switches, fuses, blown fuse detectors, controllers, etc.

Technical Characteristics:



4 wall-mounted units
4, 6, 12 floor-mounted units


Gray ASA61 (other colors available on request)


1 @ 12 and 10 @ 100 kVAR

Construction Standards

CSA, c CSA us


10 to 2000 kVAR


1, 12, 3R (4X on request)


208, 240, 480, 600 volts
