Auto Cap PF

C100 Series

Automatic Power Factor Correction

The C100 Automatic Cubicle-Type Capacitor Bank is used for central power factor correction at main and group distribution boards. It corrects the reactive power charges levied by electricity suppliers. The C100 Automatic capacitor banks consist of controlled stages driven by a power factor controller which ensures that the required capacitor power is always connected to the system. Wall or floor mounted, all components (controller, capacitor units, contactors and fuses) are built into compact steel enclosures.

Specifications:

Certification	cCSAus
Color	Grey ASA61 (other color on request)
Enclosure style	Wall Mounted 4 Units Floor Mounted 4, 6, 12 Units
Rated Power	10 to 2000 kVAR
Rated Voltage	208, 240, 480, 600 volts
Type	1, 12, 3R (4X on request)

Options:

Breakers, fuse disconnect, blown fuses indicating light

FT300 Series

Brochure
Data Sheets & Drawings
Technical Specification
Design Guide
Instruction Manual
Accessories
Info/FAQ Request Forms

Fast and Zero Crossing Switching

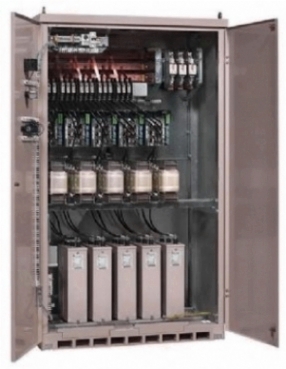

The FT300 Thyristor Switched Capacitor Bank equipped with a fast control is designed to support the line voltage and compensate the reactive power of the load. The thyristor switches fast response is achieved without any mechanical wear, noise or excessive transient associated with contactor switching. A control signal can be brought from the compensated equipment to achieve reactive power compensation with almost no delays. All steps of the capacitor bank are switched on during one network period. Each step of the bank consists of a capacitor unit with a blocking reactor that tuned to a frequency below the lowest harmonic.

Specifications:

Color	Grey ASA61
Enclosue Style	Floor Mounting 4, 6, 12 units
Construction Standards	CSA, IEC
Rated Power	10 to 1200 kVAR
Rated Voltage	208, 240, 480, 600, 750 volts
Type	1, 12, 3R (4X on request)
