Capacitance Meter

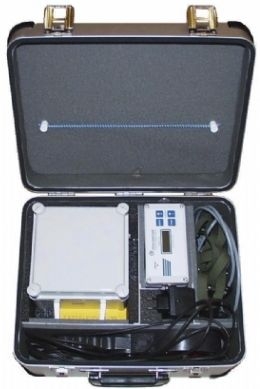

The capacitance meter type NCM-20 is designed to measure capacitor units in a capacitor bank without removing any connecting wire between separate capacitor units. This measurement is used to locate blown fuses in the units.The NCM-20 is battery operated and portable. It includes a separate display, a generator unit and is well suited for field use. The measured capacitance is displayed by a 3 ½-digit LCD display on the front face. The generator unit includes a built-in calibration capacitor.

Specifications:

Carrying Case

Meetering Probe

Current Probe (Clamp-on)

Voltage Probe

Scale/Display/Measure

20 to 2000 µF

Rated Frequency 111.86 Hz

Voltage Rate Measure 1.41 Vrms

Temperature Rated -20° C to 50° C
